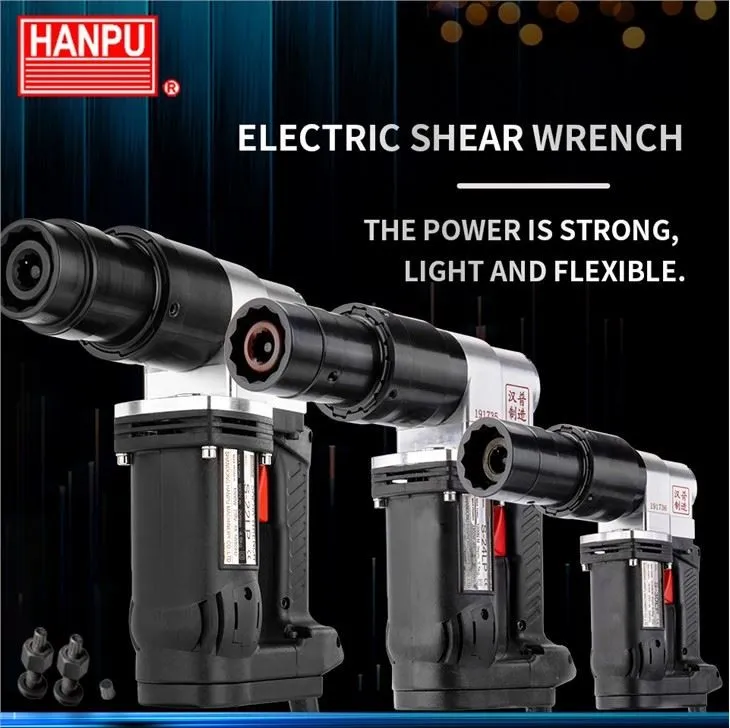

High Quality Electric Shear Wrench
Hluav taws xob torsional shear wrench yog ib hom hluav taws xob ciaj ntswj, uas yog ib qho cuab yeej rau zawm lub zog siab plum blossom taub hau bolts.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Hluav taws xob torsional shear wrench yog ib hom hluav taws xob ciaj ntswj, uas yog ib qho cuab yeej rau zawm lub zog siab plum blossom taub hau bolts.
Lub tshuab hluav taws xob torsional shear wrench tshwj xeeb yog siv los ua kom lub zog muaj zog torsional shear bolts, thiab tom qab kev sib tw ua tiav, lub taub hau sheared torx tau khaws cia rau hauv lub tes tsho tsis poob, thiab tom qab ntawd tus txhais tau rub tawm lub taub hau torx.
Tightening ntawm high-strength torsional shear bolts: nws yuav tsum tau nqa tawm ob zaug, ib tug yog thawj zaug zawm, qhov pib zawm yog nruj rau 60 feem pua -80 feem pua ntawm tus qauv axial quab yuam ntawm lub bolt (uas yog, lub tsim pre-tensioning quab yuam), thiab tus nqi pib zawm torque yuav tsum tsis txhob tsawg tshaj li qhov kawg zawm torque tus nqi 30 feem pua ntawm qhov kawg zawm, qhov thib ob zawm yog qhov kawg zawm, thiab lub taub hau torx ntawm lub siab zog bolts yuav tsum yog. unscrewed thaum lub sij hawm kawg nruj. Txhawm rau ua kom tag nrho cov bolts hauv pawg ntsia liaj qhov rooj sib npaug sib npaug, qhov kev nruj nruj thiab qhov kawg yuav tsum tau ua nyob rau hauv ib qho kev txiav txim.
Koj puas paub qhov chaw tsim khoom lub torsional shear wrench tuaj yeem ua kom tiav qhov nrawm ntawm lub zog siab torsional shear bolts?
Nyob rau hauv xyoo tas los no, muaj ntau thiab ntau manufacturers lossis cov neeg muag khoom xa tawm hluav taws xob wrenches. Lub wrenches ntawm ntau hom ntawm kev ua lag luam ua rau cov neeg siv khoom dazzled, tab sis nws yog qhov nyuaj dua los xaiv lub torsional shear wrench uas tiag tiag suits lawv.
Niaj hnub no, kuv xav ua tsaug rau lub tuam txhab super-zog. Lawv tsis tsuas yog tsim cov torsional shear wrenches, tab sis kuj torque wrenches, axial force meters, axial force torque meters, portable bolt torque testers thiab lwm yam khoom siv kuaj. Nws yog Tuam Tshoj Shandong Hanpu Machinery Industry Co., Ltd. Shandong Hanpu muaj ntau tshaj 25 xyoo ntawm kev tsim khoom thiab kev muag khoom, nkag siab txog qhov xav tau tiag tiag ntawm cov neeg siv khoom, qhov teeb meem ntawm kev tsim kho yuav raug ntsib nyob rau hauv dab tsi tej yaam num, thiab hom bolts yuav tsum tau xaiv Fastening cov cuab yeej yuav muab cov kev daws teeb meem tshaj plaws. Thaum cov neeg siv khoom ntsib xws li cov chaw tsim khoom lag luam, lawv tsuas yog yuav tsum tau qhia cov neeg ua haujlwm muag lawv tus kheej cov phiaj xwm kev tsim kho thiab cov qauv ntsia hlau, thiab lawv tuaj yeem mloog cov neeg ua haujlwm muag cov lus qhia rau lwm tus, thiab cov phiaj xwm pom zoo txiav txim siab tus nqi zoo tshaj.
Tam sim no, qhov kub-muag torsional shear wrench qauv ntawm kev ua lag luam feem ntau suav nrog cov qauv hauv qab no:
| Qauv | S-20LW | S-24W | S-22LP | S-24LP | S-30LP | S-30G | S-36G | |
| Freq | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | |
| Qhov hluav taws xob | 230v 115v |
230v 115v |
230v 115v |
230v 115v |
230v 115v |
230v 115v |
230v 115v |
|
| Max tam sim no | 8A 16A |
8A 16A |
8A 16A |
8A 16A |
8A 16A |
12A 24A |
12A 24A |
|
| Kev siv hluav taws xob Max | 1800W | 1800W | 1800W | 1800W | 1800W | 2800W | 2800W | |
| Max Torque | 640N.m | 1200N.m | 900N.m | 1200N.m | 2100N.m | 2500N.m | 3500N.m | |
| Ro ceev (min{0}}) | 28rpm ua | 15rpm ua | 20rpm ua | 9rpm ua | 6rpm ua | 5rpm ua | 2.5rpm ua | |
| Qhov hnyav (lub cev) |
4.9KG ib | 5.5 KG | 5 KG | 5.5 KG | 6.6KG ib | 8.7KG ib | 12.5 KG | |
| Tiv thaiv Class | Ob chav rwb thaiv tsev | Ob chav rwb thaiv tsev | Ob chav rwb thaiv tsev | |||||
| Adaptable Bolts Dia | S-10T | M12, M16, M20 | M16, M20, M22, M24 |
M16, M20, M22 |
M16, M20, M22, M24 |
M24, M27, M30 | M24, M27, M30 | M30, M33, M36 |
| A325 | 1/2", 5/8", 3/4" | 5/8", 3/4", 7/8",1" |
5/8", 3/4", 7/8" |
5/8", 3/4", 7/8",1" |
1", 1-1/8", 1-1/4" |
1", 1-1/8", 1-1/4" |
1-1/4", 1-3/8",1-1/2" |
|
| A490 | 5/8",3/4" | 5/8",3/4",7/8" | 5/8", 3/4", 7/8" |
5/8", 3/4", 7/8",1" |
1", 1-1/8" | / | / | |
Yog tias koj xav tau cov cuab yeej bolt fastening rau koj txoj haujlwm, thov hu rau peb. Thov saib rau Shandong Hanpu, Tuam Tshoj thaum xaiv tus ciaj ntswj!
email: marketing@hanputool.com & phone: plus 86 18653495537
